3M™ EMI Copper Foil Shielding Tape 1182, 3/4 in x 18 yd (19.05 mm x 16.5 m), Double Coate, 12 per case
3M™ EMI Copper Foil Shielding Tape 1182, 3/4 in x 18 yd (19.05 mm x 16.5 m), Double Coate, 12 per case
Call for Availability
For industrial/occupational use only. Not for consumer sale or use.

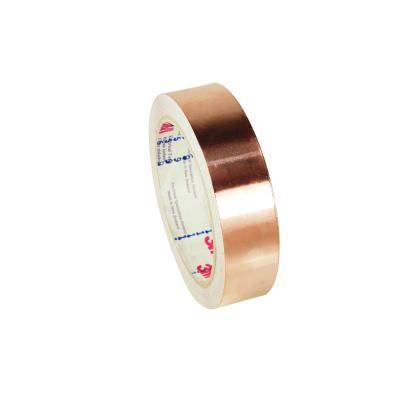

3M™ Copper Foil EMI Shielding Tape 1182 is a 3.5 mil thick acrylic adhesive shielding tape. This flame retardant tape is designed to bond 2 surfaces together physically and electrically. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.
Specification(s) | |
---|---|
Part number | 1182-3/4"X18YD |
UPC Code | 00051138496722 |
Adhesive Type | Acrylic |
Backing (Carrier) Material | Copper Foil, Flat |
Backing (Carrier) Thickness (Imperial) | 1.6 mil |
Overall Length (Imperial) | 18.0 yd |
Overall Width (Imperial) | 0.75 in |
Product Markets | Electrical Equipment Manufacturing |
Specifications Met | UL Recognized |
Country of Origin | TAI |
Unit of Use - Customary Net Weight | 0.476 LBS |
Shipping Quantity | 12.0 |
Brand | 3M |
3M™ EMI Shielding Tape 1182 has deadsoft, copper foil backing with a pressure sensitive, electrically conductive, acrylic adhesive coating on both sides that ensures firm adherence. The conductive particles in the adhesive offer low resistance between the substrate and the backing. The construction of the tape offers a good method of bonding and grounding conductive surfaces. UL Listed and RoHS 2011/65/EU Compliant.
