3M™ Membrane Switch Spacer Double Linered 9061MP, Clear, 24 in x 36 in, 11 mil, 50 Sheets/Case
3M™ Membrane Switch Spacer Double Linered 9061MP, Clear, 24 in x 36 in, 11 mil, 50 Sheets/Case
| Specification(s) | |
|---|---|
| UPC Code | 00051115634635 |
| Adhesive Type | High Performance Acrylic Adhesive 200MP |
| Backing (Carrier) Material | Polyester Film |
| Backing (Carrier) Thickness (Imperial) | 7.0 mil |
| Back Side Adhesive Thickness (Imperial) | 2.0 mil |
| Back Side Adhesive Type | High Performance Acrylic Adhesive 200MP |
| Color Family | Transparent |
| Face Side Adhesive Thickness (Imperial) | 2.0 mil |
| Face Side Adhesive Type | High Performance Acrylic Adhesive 200MP |
| Maximum Operating Temperature (Fahrenheit) | 400.0 Degree Fahrenheit |
| Minimum Operating Temperature (Fahrenheit) | -40.0 Degree Fahrenheit |
| Number of Adhesive Sides | Double-sided |
| Overall Length (Imperial) | 36.0 in |
| Overall Width (Imperial) | 24.0 in |
| Primary Liner | 94# Polycoated Kraft Paper |
| Primary Liner Color | White |
| Primary Liner Thickness (Imperial) | 7.0 mil |
| Product Color | Transparent |
| Product Number | 9061MP |
| Secondary Liner | 94# Polycoated Kraft Paper |
| Secondary Liner Color | White |
| Secondary Liner Thickness (Imperial) | 7.0 mil |
| Shelf Life | 18.0 Month |
| Total Tape Thickness without Liner (Imperial) | 11.0 mil |
| Country of Origin | USA |
| Unit of Use - Customary Net Weight | 0.561 LBS |
| Shipping Quantity | 50.0 |
| Brand | 3M |
A Top Performer Before, During and After Application
Featuring 3M™ High Performance Acrylic Adhesive 200MP, 3M™ Membrane Switch Spacer Double Linered 9061MP is ideal for the stresses of switch actuation over long periods. The adhesive on this double-sided spacer is formulated for excellent shear strength – forming a durable bond with plastics and other smooth surfaces with less oozing at the edges. This allows for easier slitting and die-cutting, faster part processing and minimal waste. The adhesive is applied at 2 mils to each side of a 7 mil polyester film carrier which adds structural strength.
Double 94# polycoated kraft (PCK) paper liners are heavier than standard liners for improved handling and lay-flat properties. They are designed to cover adhesive consistently for full bonding performance after application. Durable liners resist curling, tunneling and buckling, increase dimensional stability and hold up even under high humidity for efficient storage and processing. Liner design also enables improved rotary die-cutting at high speeds, as well as improved sheet processing.
Recommended Applications
Membrane switch spacers
Switch mounting
Circuit layer assembly
Metal dome placement
Lead protection
Die-cut laminations
Resilient and Ready

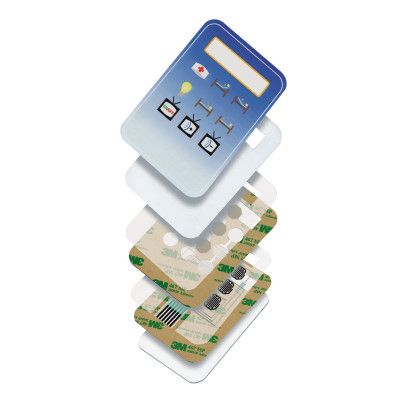

3M™ Membrane Switch Spacer Double Linered 9061MP is constructed with 2 mil high performance acrylic adhesive that is coated on each side of a 7 mil polyester film carrier. This membrane switch spacer comes double-linered with a heavy 94# moisture-resistant PCK paper. Designed to separate switch circuitry until actuation, 3M™ Membrane Switch Spacer Double Linered 9061MP provides excellent high temperature resistance (up to 400°F/204°C short-term heat resistance), as well as chemical and UV resistance.
About 3M™ High Performance Acrylic Adhesive 200MP
3M™ High Performance Acrylic Adhesive 200MP is an industry standard for graphic attachment and general industrial joining applications. It features outstanding adhesion to metal, polycarbonate (PC), ABS and polyester (PET), making it popular across many industries. This adhesive provides some initial repositionability for placement accuracy when bonding to plastics. It also performs well after exposure to humidity and hot/cold cycles, providing confidence that the switch will perform through difficult environmental conditions and millions of actuations.
The Right Choice for a Range of Applications
With low cost, long life, outstanding environmental performance and eye-catching graphics, membrane switches are found in more and more applications. They range from farm tractors and medical test systems to microwave ovens and fish finders. Whatever the need, 3M has a membrane switch construction suited for the job.
