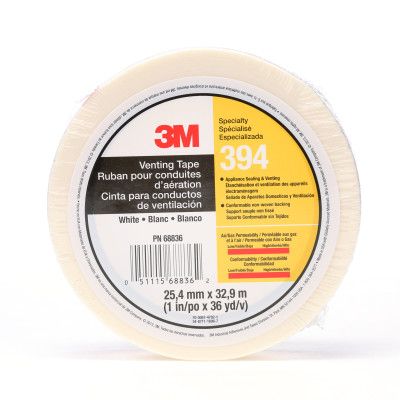

3M™ Vent Tape 394, White, 1 in x 36 yd, 4 mil, 36 Roll/Case, Individually Wrapped Conveniently Packaged
3M™ Vent Tape 394, White, 1 in x 36 yd, 4 mil, 36 Roll/Case, Individually Wrapped Conveniently Packaged
| Specification(s) | |
|---|---|
| UPC Code | 00051115688362 |
| Adhesion Strength (Imperial) | 12.0 |
| Adhesive Type | Acrylic |
| Application | Outgas Venting in Appliances |
| Backing (Carrier) Material | Non-woven |
| Backing Material | Non-woven |
| Backing Thickness (Imperial) | 4.0 mil |
| Color Family | White |
| Elongation at Break | 18 |
| Maximum Operating Temperature (Fahrenheit) | 120.0 Degree Fahrenheit |
| Overall Length (Imperial) | 36.0 yd |
| Overall Thickness (Imperial) | 4.0 mil |
| Overall Width (Imperial) | 1.0 in |
| Performance Level | Specialty |
| Product Color | White |
| Product Form | Roll |
| Product Key | 394 IW |
| Product Number | 394 |
| Tensile Strength (Imperial) | 6.0 lb/in |
| Total Tape Thickness without Liner (Imperial) | 4.0 mil |
| Country of Origin | USA |
| Shipping Quantity | 36.0 |
| Brand | 3M |
Conformable, Non-Woven Backing Offers High Air/Gas Permeability
3M™ Vent Tape 394 is manufactured to meet most typical outgassing requirements for foam-in-place insulation processes in appliance and other industries. The non-woven backing conforms well, providing an effective seal. This unique backing has high air and gas permeability, allowing minimal foaming voids and has good burst strength, which helps reduce clean-up.
Recommended applications
Outgas venting in appliances
Used in Foam-In-Place Manufacturing Process
A common challenge in refrigerator and freezer manufacturing is the venting of insulation foam gasses while keeping foam in place. 3M™ Vent Tape is used to cover openings in the cabinet of refrigerators and freezers during the foam-in-place manufacturing process. It allows air and gases to escape while keeping solids (such as urethane foam) in place. The air-permeable, non-woven backing of 3M™ Vent Tape 394 keeps foam-in-place insulation inside door and appliance cavities, while helping eliminate voids.
Bringing Better Ideas to the Surface through Science and Innovation
In the 3M Industrial Adhesives and Tapes Division, they apply the science of adhesion to deliver innovative solutions that improve the design and manufacturing processes of companies around the world. In the end, their technologies help customers like you deliver competitive products to the market faster and more efficiently.
