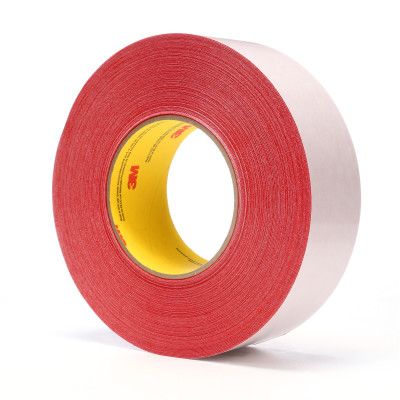

3M™ Double Coated Tape 9741R, Red, 48 mm x 55 m, 6.5 mil, 24 Roll/Case
3M™ Double Coated Tape 9741R, Red, 48 mm x 55 m, 6.5 mil, 24 Roll/Case
| Specification(s) | |
|---|---|
| UPC Code | 00051111073599 |
| Adhesive Type | Acrylic |
| Application | Zero-Speed and General Splicing |
| Backing (Carrier) Material | Polyester |
| Backing (Carrier) Thickness (Imperial) | 0.5 mil |
| Carrier Material | Polyester Film |
| Carrier Thickness | 0.5 mil |
| Color Family | Red |
| Face Side Adhesive Type | Acrylic |
| Maximum Operating Temperature (Fahrenheit) | 200.0 Degree Fahrenheit |
| Number of Adhesive Sides | Double-sided |
| Overall Length (Imperial) | 60.15 yd |
| Overall Width (Imperial) | 1.9 in |
| Primary Liner | 55# Glassine |
| Primary Liner Color | White |
| Product Color | Red |
| Product Form | Roll |
| Product Key | 9741R |
| Product Number | 9741R |
| Tape Type | Double Coated |
| Total Tape Thickness without Liner (Imperial) | 6.5 mil |
| Country of Origin | USA |
| Shipping Quantity | 24.0 |
| Brand | 3M |
Ready to Bond to Many Surfaces
3M™ Double Coated Tape 9741R is a double-coated tape engineered with a polyester film that is heavily coated with ultra-high peel acrylic adhesive on both sides. The thick, heavy adhesive offers ultra-high peel strength for superior bonding and conformability to both flat and irregular surfaces. This industrial double-sided tape also bonds well to most substrates, including low surface energy (LSE) and difficult-to-splice substrates. With excellent UV resistance and low-to moderate-temperature performance, Double Coated Tape 9741R provides resilience and durability. This tape is easy-to-use. It can be torn by hand, providing simple and quick application.
Recommended Applications
3M™ Double Coated Tape 9741R can be used across a wide variety of industries for many applications, including:
Plastics and metal profile extrusions
Decorative trim
Seaming vinyl banners
Splicing
Superior Bonding for Long-Lasting Performance
3M™ Double Coated Tape 9741R is a super aggressive splicing tape that meets the requirements of demanding applications. Conformable, yet resilient and durable, Double Coated Tape 9741R provides superior bonding. Discover the benefits that come from a tape ready to deliver a long-lasting, reliable performance.
About Double-Coated Tape
In general, double coated tape is composed of a paper, film, or tissue carrier that is coated on both sides with pressure sensitive adhesive. The adhesive is protected by a peel-away liner that can be removed at the time of application or left in place until the joining surfaces are ready to be attached. These tapes can be applied by hand or with a dispenser. Double coated tape dispensers are available in a variety of configurations ranging from manual to fully automatic. Applications for double coated tape are found in construction, web processing, fabrication, arts and hobby.
