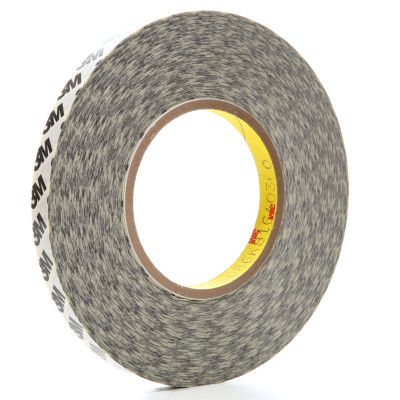

3M™ High Performance Double Coated Tape 9086, White, 1/2 in x 60 yd, 7.5 mil, 72 Roll/Case
3M™ High Performance Double Coated Tape 9086, White, 1/2 in x 60 yd, 7.5 mil, 72 Roll/Case
| Specification(s) | |
|---|---|
| UPC Code | 00051128759196 |
| Adhesive Type | Modified Acrylic |
| Application | Zero-Speed and General Splicing |
| Backing (Carrier) Material | Tissue |
| Backing (Carrier) Thickness (Imperial) | 0.5 mil |
| Back Side Adhesive Thickness (Imperial) | 3.5 mil |
| Back Side Adhesive Type | High Performance Adhesive 375 |
| Carrier Material | Tissue |
| Carrier Thickness | 0.5 mil |
| Color Family | White |
| Face Side Adhesive Thickness (Imperial) | 3.5 mil |
| Face Side Adhesive Type | High Performance Adhesive 375 |
| Indoor/Outdoor | Both |
| Maximum Operating Temperature (Fahrenheit) | 250.0 Degree Fahrenheit |
| Minimum Operating Temperature (Fahrenheit) | -40.0 Degree Fahrenheit |
| Overall Length (Imperial) | 60.0 yd |
| Overall Width (Imperial) | 0.5 in |
| Primary Liner | Glassine Paper |
| Primary Liner Color | White |
| Primary Liner Thickness (Imperial) | 3.0 mil |
| Product Color | White |
| Product Form | Roll |
| Product Key | 9086 |
| Product Number | 9086 |
| Substrate | Plastic (Flexible Vinyl) |
| Substrate 1 | Glass (Inked Glass - Ceramic) |
| Substrate 2 | Metal (Aluminum - Powder Coated - Copper - Stainless Steel - Zinc/Galvanized) |
| Total Tape Thickness without Liner (Imperial) | 7.5 mil |
| Country of Origin | DEU |
| Unit of Use - Customary Net Weight | 0.514 LBS |
| Shipping Quantity | 72.0 |
| Brand | 3M |
A High-Performance Bond for Nearly Any Substrate
Thicker and stickier than traditional tapes, 3M™ High Performance Double Coated Tape 9086 is suitable for a wide range of materials including paint, stainless steel, glass, foams and a variety of plastics. The adhesive is applied at a thick 3.5 mils on each side of the carrier for good wet-out regardless of whether the surface is smooth, rough or textured. The 0.5 mil tissue carrier conforms well to irregular surfaces, and can be torn by hand for easy handling and application. This tape features a white 3.2 mil glassine paper liner which provides easy, efficient release during tape application.
Recommended Applications
Zero-speed and general splicing
POP displays
Fabrics
Blind manufacturing
Print finishing
3M™ Adhesive 375 Family Provides High Initial Tack
3M™ High Performance Double Coated Tape 9086 features 3M™ Adhesive 375, formulated for very high initial adhesion and excellent peel and shear performance. This high-performance adhesive has been tested for high peel and shear performance on substrates including stainless steel, polycarbonate, glass, HDPE, ABS and high pressure laminate.
Understanding Double Coated Tape
Double coated tapes are composed of a paper, film, or tissue carrier that is coated on both sides with pressure sensitive adhesive. The adhesive is protected by a peel-away liner that can be removed at the time of application or left in place until the joining surfaces are ready to be attached. Due to their dimensional stability, these double sided tapes can be applied by hand or with a dispenser with minimal stretch or deformation. Double coated tape dispensers are available in a variety of configurations ranging from manual to fully automatic. Double coated tapes are used in a broad range of industrial applications.
Bringing Better Ideas to the Surface through Science
3M Industrial Adhesives and Tapes Division applies the science of adhesion to deliver innovative solutions that improve the design and manufacturing processes of companies around the world. In the end, these technologies help customers deliver competitive products to the market faster and more efficiently.
