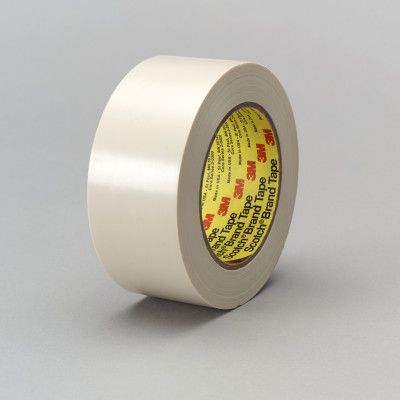

3M™ Electroplating Tape 470, Tan, 1/2 in x 36 yd, 7.1 mil, 72 Roll/Case
3M™ Electroplating Tape 470, Tan, 1/2 in x 36 yd, 7.1 mil, 72 Roll/Case
| Specification(s) | |
|---|---|
| Part number | 470 |
| UPC Code | 00021200074677 |
| Adhesion Strength (Imperial) | 37.0 |
| Adhesive Type | Rubber |
| Application | Electroplating and Anodizing Processes, General Use Vinyl |
| Backing (Carrier) Material | Vinyl |
| Backing (Carrier) Thickness (Imperial) | 6.3 mil |
| Backing Material | Vinyl |
| Backing Thickness (Imperial) | 6.3 mil |
| Color Family | Beige |
| Elongation at Break | 180 |
| Maximum Operating Temperature (Fahrenheit) | 250.0 Degree Fahrenheit |
| Overall Length (Imperial) | 36.0 yd |
| Overall Thickness (Imperial) | 7.1 mil |
| Overall Width (Imperial) | 0.5 in |
| Product Color | Tan |
| Product Form | Roll |
| Product Type | Vinyl Tape |
| Tensile Strength (Imperial) | 20.0 lb/in |
| Total Tape Thickness without Liner (Imperial) | 7.1 mil |
| Country of Origin | USA |
| Unit of Use - Customary Net Weight | 0.2 LBS |
| Consumer - Previous Packaging Level Unit | RLS |
| Shipping Quantity | 72.0 |
| Brand | 3M |
Rugged Reliability
3M™ Electroplating Tape 470 is engineered to withstand intense and difficult conditions associated with electroplating and anodizing processes. It's built on a flexible vinyl backing that conforms to irregular or curved surfaces. It is resistant to most common solvents and has excellent resistance to chemicals used in electroplating and anodizing. This tape will hold up while operating at temperatures of up to 170°F/76°C. When you're finished, the tape removes cleanly from most surfaces. In addition, the backing accepts marker ink and is printable using a thermal transfer process, making customization relatively easy when needed.
Recommended Applications
Masking during electroplating operations, including both flat strip and overlapping masks
Masking during anodizing operations
Wrapping, patching, coated racks and masking irregular surfaces
Labeling
Milling and etching
Peening operations
Sealing containers from water intrusion
